Structured Wall Pipe Extrusion Line

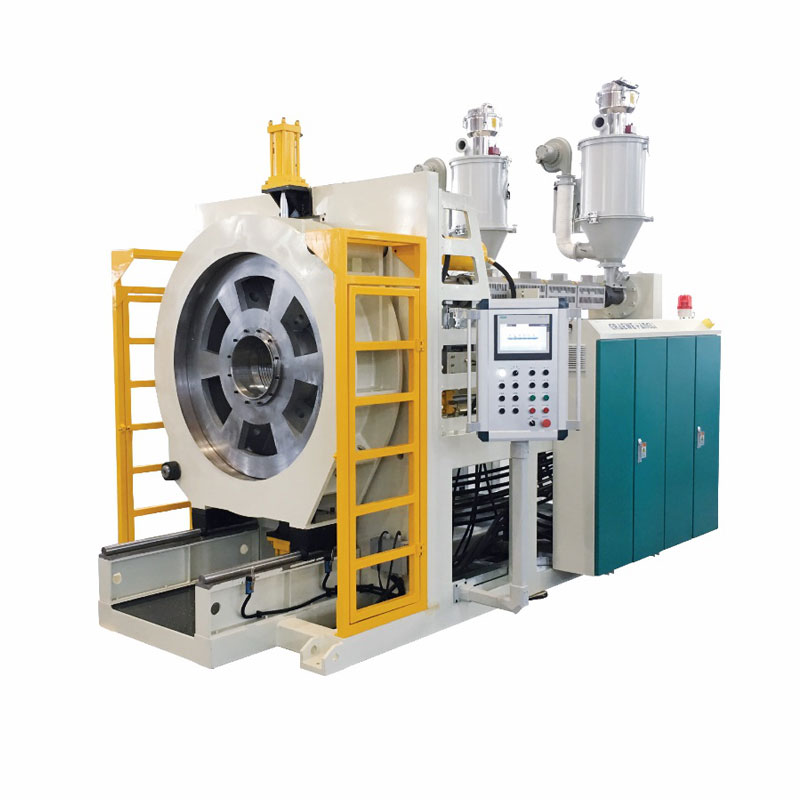

Structured Wall Pipe Extrusion Line

A structured wall pipe extrusion line is a manufacturing system designed to produce structured wall pipes, also known as corrugated pipes. Structured wall pipes have a unique construction with an outer corrugated layer and a smooth inner layer. This type of pipe offers advantages such as high streng......

Send Inquiry

Product Description

A structured wall pipe extrusion line is a manufacturing system designed to produce structured wall pipes, also known as corrugated pipes. Structured wall pipes have a unique construction with an outer corrugated layer and a smooth inner layer. This type of pipe offers advantages such as high strength, flexibility, lightweight, and resistance to corrosion. Here are the key components and steps involved in a structured wall pipe extrusion line:

1. Extruder: The extruder is the main component of the extrusion line. It consists of a screw and barrel system that melts and conveys the plastic material, typically high-density polyethylene (HDPE), polypropylene (PP), or polyvinyl chloride (PVC), to the die. The extruder applies heat and mechanical shear to melt the plastic pellets or powder and create a homogenous molten mass.

2. Corrugator: The corrugator is a key component in the structured wall pipe extrusion line. It forms the corrugated profile on the outer surface of the pipe. The corrugator consists of a set of specially designed corrugating rolls that shape the molten plastic as it passes through. The number and shape of the corrugations can vary depending on the desired pipe specifications.

3. Cooling and Forming: After leaving the corrugator, the pipe passes through a cooling section where it is rapidly cooled using a cooling medium, such as water or air. Cooling ensures that the corrugations maintain their shape and the pipe solidifies.

4. Haul-off Unit: A haul-off unit, equipped with belts or caterpillar tracks, pulls the cooled and formed pipe at a constant speed. This ensures consistent pipe dimensions and prevents distortion or stretching.

5. Cutting and Stacking: Once the pipe reaches the desired length, it is cut using a saw or other cutting mechanism. The cut pipe sections are then stacked or conveyed to the packaging or storage area.

6. Optional Equipment: Additional equipment can be integrated into the extrusion line to enhance the pipe's quality or functionality. This can include printers for marking the pipe with identification information, embossing units for adding manufacturer details, or online quality control systems to monitor parameters like wall thickness or corrugation profile.

Structured wall pipes have a wide range of applications, including drainage systems, cable protection, sewage pipes, culverts, and agricultural irrigation. They are particularly well-suited for applications that require flexibility, durability, and resistance to external pressures or environmental conditions.

Manufacturers of structured wall pipe extrusion lines can provide customized solutions based on specific project requirements, pipe dimensions, and material specifications. These lines are designed to ensure precise control over the corrugation profile, wall thickness, and overall quality of the structured wall pipes produced.
