Key features and characteristics of DC brushless solar pumps

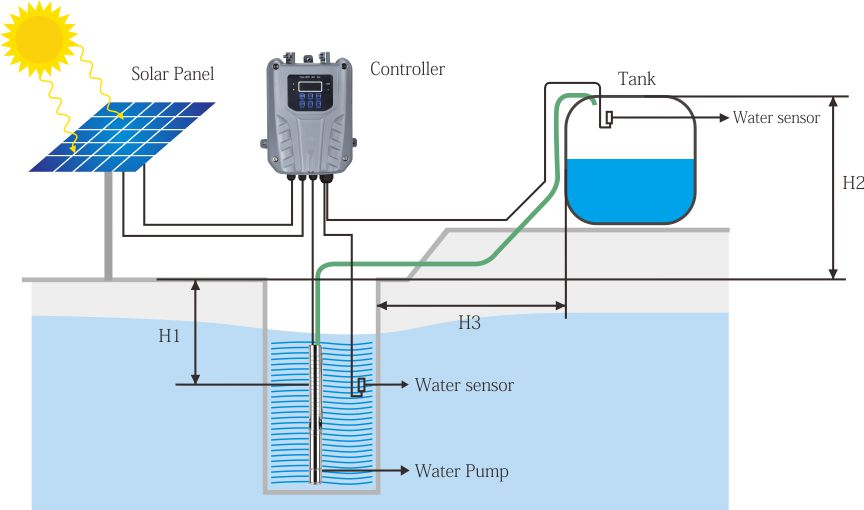

A DC brushless solar pump is a type of water pump that operates on direct current (DC) power and employs brushless motor technology. These pumps are commonly used in solar-powered water supply systems, irrigation systems, and other applications where a reliable and energy-efficient water pumping solution is needed, often in remote or off-grid locations. Here are some key features and characteristics of DC brushless solar pumps:

1. Brushless Motor: Unlike traditional brushed DC motors, which have brushes that make physical contact with the motor's commutator, brushless DC motors do not have brushes. Instead, they use electronic circuitry to control the motor's operation. This design eliminates brush wear and reduces maintenance requirements.

2. Solar-Powered: DC brushless solar pumps are specifically designed to work with solar photovoltaic (PV) panels. Solar panels generate electricity from sunlight, which is then used to power the pump directly. This makes them highly energy-efficient and environmentally friendly, as they operate without the need for grid electricity or fuel.

3. Energy Efficiency: DC brushless motors are known for their high energy efficiency. They can vary their speed and output to match the water demand, reducing energy consumption when less water is required and increasing output when demand is higher.

4. Variable Speed Control: Many DC brushless solar pumps come with variable speed control options, allowing users to adjust the pump's performance based on specific water flow requirements. This flexibility can help optimize water delivery and reduce energy consumption.

5. Low Maintenance: The absence of brushes in the motor means that there is minimal wear and tear on the motor components. This results in longer service life and lower maintenance costs compared to traditional brushed DC motors.

6. Reliability: DC brushless solar pumps are designed for durability and reliability, making them suitable for remote and off-grid applications where access to maintenance and repair services may be limited.

7. Corrosion Resistance: Solar pumps used in outdoor and agricultural settings are often built with materials that resist corrosion, ensuring long-term functionality in various environmental conditions.

8. Applications: DC brushless solar pumps are commonly used for agricultural irrigation, livestock watering, domestic water supply, pond and fountain circulation, and other water transfer and distribution tasks.

9. Solar Controller: A solar controller is typically used in conjunction with DC brushless solar pumps to manage the power supplied by the solar panels. The controller regulates the pump's speed and performance based on available sunlight and system requirements.

10. Protection Features: These pumps may include protection features such as over-voltage protection, dry-run protection, and high-temperature protection to safeguard the pump and system from damage.

When selecting a DC brushless solar pump, it's important to consider factors such as the required flow rate, head (vertical lift), the size of the solar PV array, and the specific application requirements. Proper system design and sizing are crucial to ensure efficient and reliable water pumping using solar energy.
