Information about the 7-inch rafter square tool

2023-10-17

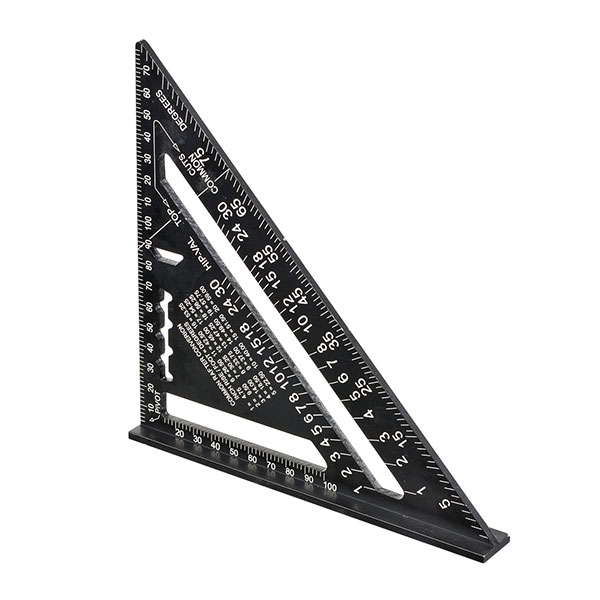

A 7-inch rafter square, also known as a speed square or framing square, is a versatile measuring and layout tool used primarily in carpentry and construction. It is typically made of durable aluminum or steel and features several markings and features that aid in various tasks. Here's some important information about the 7-inch rafter square tool:

Design and Features: A 7-inch rafter square is generally shaped like an L, with two arms that meet at a 90-degree angle. The arms typically have scales, numbers, and markings etched or stamped into them. The most common features and markings found on a 7-inch rafter square include:

1. 90-Degree Angle: One arm of the square has a 90-degree angle, allowing you to check and mark right angles accurately.

2. Degree Scale: The outer edges of the square often have a degree scale marked from 0 to 90 degrees, enabling you to measure and mark various angles.

3. Inch and Metric Scales: Along the arms, you'll find inch and metric scales, allowing you to measure and mark lengths accurately.

4. Rafter Tables: Rafter squares often include rafter tables, which provide information for determining common rafter lengths, cuts, and angles for roof framing.

5. Saw Guide: Some rafter squares have a notch or cutout on one of the arms, called a saw guide. This guide allows you to align the square with a saw blade for making accurate 45-degree or 90-degree cuts.

Uses and Applications: The 7-inch rafter square tool has numerous applications in carpentry, framing, and construction work, including:

1. Marking and Layout: It is commonly used for measuring and marking straight lines, angles, and notches on lumber, plywood, or other materials during layout and construction tasks.

2. Checking Right Angles: The 90-degree angle of the square allows you to verify and mark right angles quickly and accurately.

3. Determining Angles: The degree scale on the square enables you to measure and mark various angles, such as when installing roof rafters or stair stringers.

4. Saw Guide: The saw guide feature helps align the square with a saw blade for making precise 45-degree or 90-degree cuts.

5. Roof Framing: The rafter tables on the square provide valuable information for determining common rafter lengths, cuts, and angles in roof framing.

Compact Size: The 7-inch size refers to the length of one of the arms of the square, making it compact and portable. It is convenient to carry in a tool belt or pocket, making it a popular choice for carpenters and construction workers.

When using a 7-inch rafter square, it's essential to ensure it is properly aligned and positioned against the material for accurate measurements and markings. Regular maintenance, such as cleaning and protecting the square from rust, helps prolong its lifespan and maintain its accuracy.

Overall, a 7-inch rafter square is a versatile tool that aids in various measuring, layout, and cutting tasks in carpentry and construction projects.
