Features and aspects of insulation piercing connectors

2023-10-17

Insulation piercing connectors (IPCs) are electrical connectors designed to establish a secure and reliable electrical connection without the need for stripping or cutting the insulation of electrical conductors. They are commonly used in electrical distribution systems, telecommunications, and other applications where tapping into an existing insulated wire is required.

Here are some key features and aspects of insulation piercing connectors:

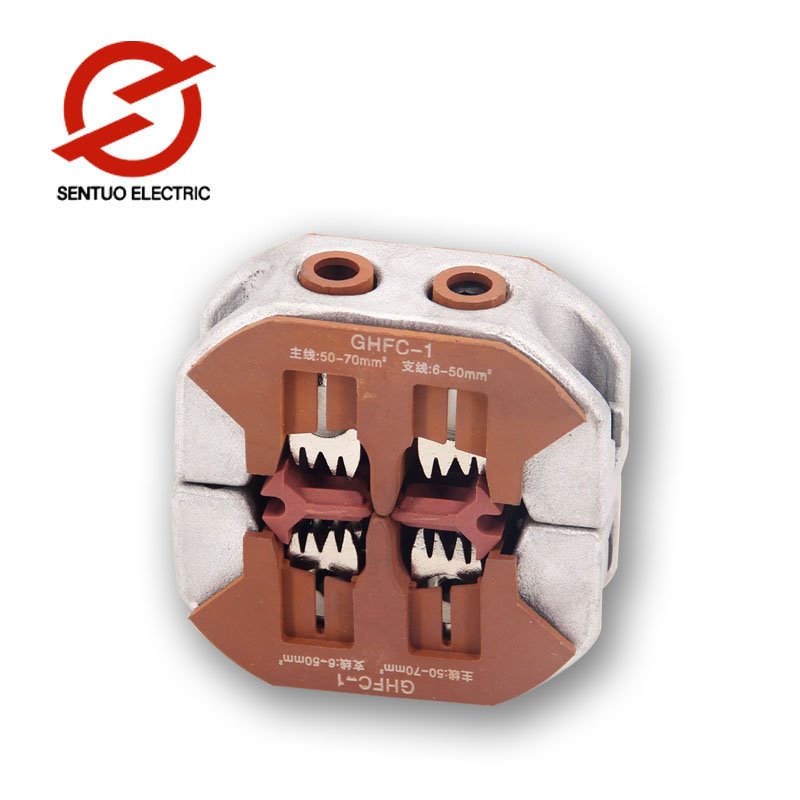

1. Design and Construction: Insulation piercing connectors typically consist of a body or housing made of an electrically conductive material, such as copper or aluminum, with sharp-edged or pointed teeth. These teeth penetrate the insulation of the wire when the connector is properly installed, creating a reliable electrical contact between the connector and the conductor.

2. Insulation Piercing Mechanism: The sharp teeth of the insulation piercing connector are designed to pierce through the insulation layer of the wire upon installation. This allows the connector to make direct contact with the conductor, ensuring electrical continuity and conductivity. The piercing action also helps to establish a secure and gas-tight connection by displacing insulation material and making contact with the underlying conductor.

3. Ease of Installation: Insulation piercing connectors are designed to simplify the installation process. They often feature a hinged or spring-loaded design, allowing the connector to be opened and closed easily. The wire to be tapped is inserted into the connector, and when the connector is closed, the teeth pierce through the insulation to establish a connection.

4. Compatibility and Versatility: Insulation piercing connectors are available in various sizes and configurations to accommodate different wire sizes and types. They can be used with solid or stranded conductors, as well as different insulation materials, such as PVC, XLPE, or rubber. It is essential to select an insulation piercing connector that is compatible with the specific wire size and insulation type to ensure a proper and secure connection.

5. Electrical Performance and Safety: Insulation piercing connectors are designed to maintain electrical conductivity and performance while ensuring safety. They should provide low electrical resistance to minimize voltage drops and overheating. Additionally, they should be designed to withstand environmental factors, such as moisture, temperature variations, and vibrations, to maintain a reliable connection over time.

6. Reusability: Insulation piercing connectors are often designed for single-use applications. However, there are reusable variants available that allow for disconnection and reconnection without compromising the integrity of the connection.

It's important to note that proper installation techniques and adherence to manufacturer guidelines are crucial for the reliable and safe use of insulation piercing connectors. Following recommended procedures and ensuring proper insulation displacement, conductor positioning, and secure closure of the connector are essential for maintaining electrical continuity and preventing potential hazards.

Insulation piercing connectors offer a convenient solution for tapping into existing electrical conductors without the need for stripping or cutting insulation. However, it is recommended to consult with a qualified electrician or follow local electrical codes and regulations when using insulation piercing connectors to ensure safe and compliant installations.
