Basic principle of a magnetic switch sensor

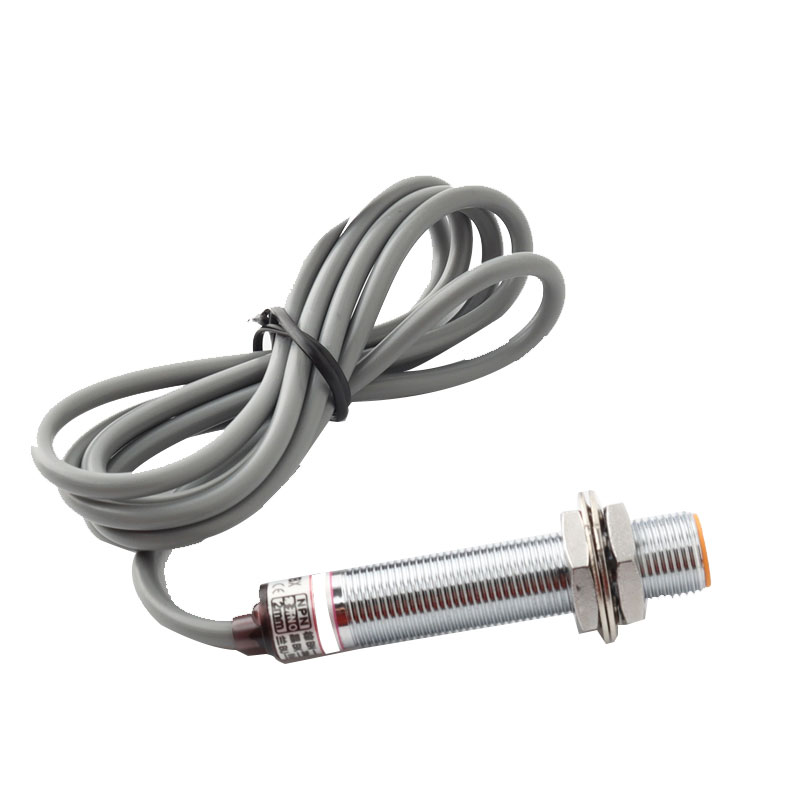

A magnetic switch sensor, often referred to as a magnetic sensor or magnetic reed switch, is a type of sensor that detects the presence or absence of a magnetic field. These sensors are commonly used in various applications for tasks such as position sensing, security systems, and door/window contact sensing.

The basic principle of a magnetic switch sensor is quite simple. It consists of two main components:

1. Reed Switch: The core component of a magnetic switch is a reed switch, which is typically made of two thin, ferromagnetic (magnetic) materials sealed within a glass tube. The two ends of the reed switch are exposed and act as electrical contacts.

2. Magnet: A permanent magnet or an electromagnet is placed in close proximity to the reed switch. When a magnetic field is applied to the reed switch, it causes the thin ferromagnetic materials inside to become magnetized and attract, effectively closing the electrical contacts.

The operation of a magnetic switch sensor is straightforward:

- In the absence of a magnetic field, the reed switch remains open, and there is no electrical continuity between its two contacts.

- When a magnetic field is brought close to the sensor, it magnetizes the ferromagnetic materials inside the reed switch, causing the contacts to attract and close. This creates electrical continuity between the contacts, allowing an electrical current to flow.

Key features and applications of magnetic switch sensors include:

1. Simplicity: Magnetic switch sensors are simple and reliable due to their lack of moving parts (aside from the magnetic contacts), which reduces wear and tear.

2. Security Systems: Magnetic switch sensors are often used in security systems to detect the opening or closing of doors and windows. When a door or window is opened, the magnetic field is disrupted, triggering an alarm.

3. Position Sensing: These sensors can be used for position sensing in various applications, such as detecting the position of valves, doors, or movable parts in machinery.

4. Proximity Sensing: Magnetic switch sensors can detect the proximity of magnets, which can be useful in various industrial and automation applications.

5. Low Power Consumption: They typically have low power requirements, making them suitable for battery-powered devices.

6. Tamper Detection: Magnetic switch sensors can be used to detect tampering or unauthorized access to equipment or enclosures.

It's important to note that while magnetic switch sensors are simple and reliable, they are primarily binary sensors, meaning they are either in an "open" or "closed" state. They do not provide precise measurements or continuous data like some other types of sensors. Their primary function is to detect the presence or absence of a magnetic field.
