What is the use of the Push-button switch?

2023-10-17

What is the use of the Push-button switch?

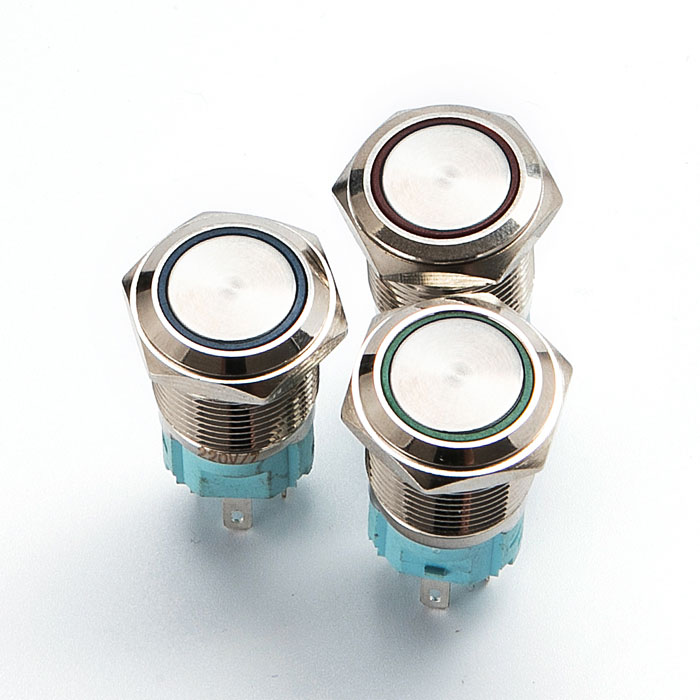

Push-button switch refers to a switch that uses a button to push the transmission mechanism to make the moving contact and the static contact press on or off and realize the circuit switching. The push button switch is a kind of master electrical appliance with simple structure and wide application. In electrical automatic control circuits, it is used to manually send control signals to control contactors, relays, electromagnetic starters, etc. The installation and wiring of the push button switch is very important. How to install and wire the illuminated pushbutton switch Tools/raw materials One piece of illuminated pushbutton switch Some cables Method/step 1 The structure of the illuminated Push-button switch: indicator light, pushbutton cap, return spring, bridge type moving contact, static contact point, terminal post. How to install and wire the illuminated pushbutton switch How to install and wire the illuminated pushbutton switch How to install and wire the illuminated pushbutton switch It can complete basic control such as start, stop, forward and reverse, speed change and interlock.
